Product Details:
|
| Usage: | Home Appliance,Electric Bicycle, Car | Speed(rpm): | 8-1600rpm(no Load) |
|---|---|---|---|
| Type: | 36 Mm Diameter Micro Planetary Gear Motor | Protect Feature: | Totally Enclosed |
| Torque: | 0.7-100KG.cm | Voltage(v): | 24VDC |
| Product Name: | Micro DC Planetary Gearbox Motor | Diameter: | 36mm |
| Typical Applications: | Electric Toy Model,Curtain | Shaft Diameter: | 8MM |

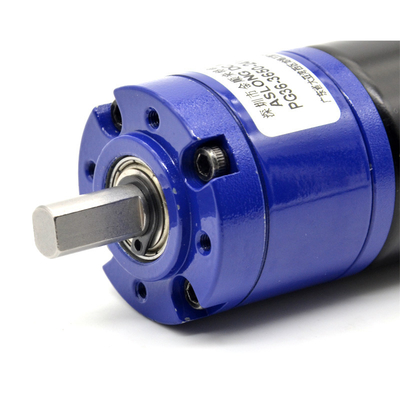

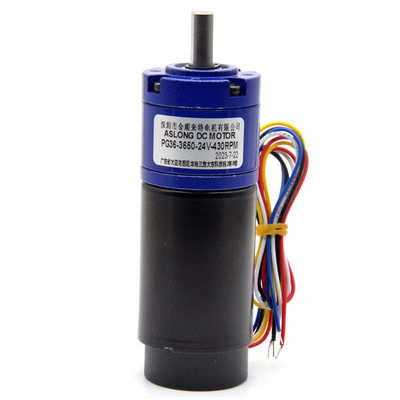

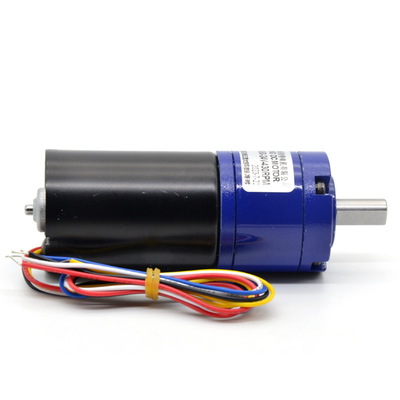

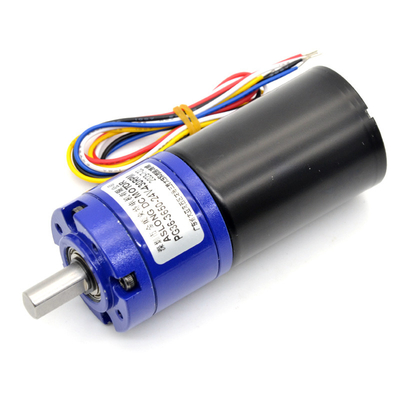

12v 1600rpm Brushless Planetary Gear Motor
12v 1600rpm Brushless Planetary Gear Motor 24V 36mm Gearbox For Home Appliance High Torque Low Noise
| Planetary gearbox Micro Dc Gear Motor Description: |
Now ,you can get our this planeatry gearbox dc gear motor and other related planetary gearbox motors as following:
|
|
|
|
PG36-3650 |
PG36-3625 |
PG36-555 |
PG32-31ZY |
|
|
|
|
| PG28-385 | PG28-2838 | PG42-4260 | PG45-4575 |
| Specification: | ||
| Performance Range: | Key Features: | Typical Applications: |
| - Voltage: 12/24VDC | - Planetary structure reducer | - Electric Curtain |
| - Speed: 8-1600rpm | - Low noise | - Electric Valve |
| - Torque 0.7-100kg.cm | - CW/CCW Running | - Safe and Locking |
| - Shaft: D shape (Motor shaft shape and length can be customized) | - High quality materials | - Home Application |
1. Standard Operating Conditions: Rated Voltage: 12v 24v.
1-1 Direction of Rotation:CW when viewed from output shaft side
1-2 Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-3 Storage Temperature:Temperature range of -20C~+60C
2. Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
-- No load speed:2-160rpm.
-- Robotics, Small Appliance, Fanner, Electric Curtain;
-- Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
-- Electric motor,low noise,low current and no spark.
Ratio: 1:3.7 /1:5.18/ 1:14/ 1:27/ 1:50/ 1:71/ 1:100/ 1:139/ 1:189/ 1:263/ 1:369/ 1:516 / 1:721
-- 3650 Motor information : 12V 6000RPM , 24V 6000RPM 8000RPM Remark: Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding.
| Datasheet | |||||||
| MODEL | VOLTAGE | NO LOAD | AT RATED LOAD | ||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | MA | r/min | MA | Kg.cm | |||
| PG36-3650 | 6-24V | 12VDC | 1600 | 230 | 1300 | 1300 | 0.7 |
| 6-24V | 12VDC | 1200 | 230 | 1000 | 1300 | 1 | |
| 6-24V | 12VDC | 430 | 230 | 360 | 1300 | 3 | |
| 6-24V | 12VDC | 230 | 230 | 195 | 1300 | 5 | |
| 6-24V | 12VDC | 120 | 230 | 100 | 1300 | 9 | |
| 6-24V | 12VDC | 85 | 230 | 75 | 1300 | 13 | |
| 6-24V | 12VDC | 60 | 230 | 52 | 1300 | 18 | |
| 6-24V | 12VDC | 45 | 230 | 40 | 1300 | 20 | |
| 6-24V | 12VDC | 32 | 230 | 24 | 1300 | 26 | |
| 6-24V | 12VDC | 23 | 230 | 17 | 1300 | 36 | |
| 6-24V | 12VDC | 16 | 230 | 12 | 1300 | 51 | |
| 6-24V | 12VDC | 12 | 230 | 9 | 1300 | 71 | |
| 6-24V | 12VDC | 8 | 230 | 6 | 1300 | 100 | |
| 6-24V | 24VDC | 1600 | 130 | 1300 | 1300 | 0.7 | |
| 6-24V | 24VDC | 1200 | 130 | 1000 | 670 | 1 | |
| 6-24V | 24VDC | 430 | 130 | 360 | 670 | 3 | |
| 6-24V | 24VDC | 230 | 130 | 195 | 670 | 5 | |
| 6-24V | 24VDC | 120 | 130 | 100 | 670 | 9 | |
| 6-24V | 24VDC | 85 | 130 | 75 | 670 | 13 | |
| 6-24V | 24VDC | 60 | 130 | 52 | 670 | 18 | |
| 6-24V | 24VDC | 45 | 130 | 40 | 670 | 20 | |
| 6-24V | 24VDC | 32 | 130 | 24 | 670 | 26 | |
| 6-24V | 24VDC | 23 | 130 | 17 | 670 | 36 | |
| 6-24V | 24VDC | 16 | 130 | 12 | 670 | 51 | |
| 6-24V | 24VDC | 12 | 130 | 9 | 670 | 71 | |
| 6-24V | 24VDC | 8 | 130 | 6 | 670 | 100 | |
| Remarks: 1. Shaft dimension can be customized. 2. The Voltage can be 6V, 12V,24V; The DC Motor's speed is adjustable. 3. This gearbox can matched with other DC Motor. |
|||||||
Dimensions and connection(unit:mm):
