Product Details:
|
| Usage: | Home Appliance,Boat | Commutation: | Brush |
|---|---|---|---|
| Speed(rpm): | 7RPM To 960RPM | Type: | Mini 12v Dc Gear Motor |
| Protect Feature: | Totally Enclosed | Torque: | 0.07kg.cm-16kg.cm |
| Voltage(v): | 12-24V | Material: | Stainless Steel |
| Shaft Diameter: | 8MM | ||
| Highlight: | 7RPM Small DC Gear Motors,37mm 12V Small DC Gear Motors,7RPM High Torque Electric Motors |
||

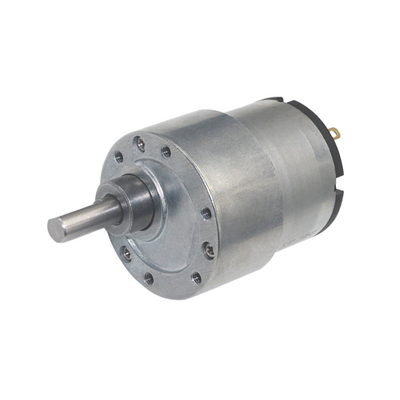

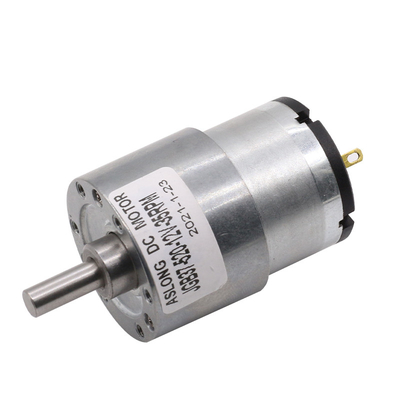

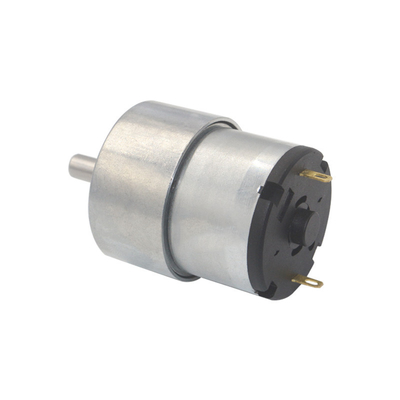

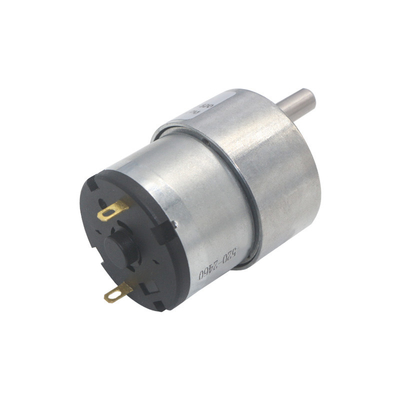

37mm 12V 7RPM Small DC Gear Motors High Torque Electric Motors
37mm 12V DC 7RPM To 960RPM High Torque Gear Box Electric Motor New Gearmotor
| JGB37-520 Micro Dc Gear Motor Description: |
Now ,you can get our this 37mm dc gear motor with magnetic encoder(JGB37-520B),and other related 37mm gearbox motors as following:
|
|
|
|
| JGB37-520B | JGB37-3530 | JGB37-3157 | JGB37-3625 |
|
|
|
|
| JGB37-3650 | JGB37-545 | JGB37-550 | ZGA37-3530 |
Specification:
Notice: The lower speed is the larger torque
Voltage: DC12V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
Voltage: DC24V
No-load Speed: 7rpm, 12rpm, 22rpm, 35rpm, 45rpm, 66rpm, 107rpm, 200rpm, 320rpm, 600rpm, 960rpm
Max Power: 10W
Max Torque: 25kg/cm
Motor Diameter: 33mm
Motor Body Length: 22.7mm
Output Shaft Diameter: 6mm
Output Shaft Length: 15mm
Gearbox Diameter:37mm
Gearbox Length:see the table
Datasheet:
| Model:JGB37-520 | No load | On Load | Stall | Ratio | Length(L) | Weight | ||||||
| Workable Voltage | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||||
| Workable Voltage | V | rpm | ma | rpm | ma | Kg.cm | W | Kg.cm | A | 1:00 | mm | g |
| 3-9V | 6 | 1280 | 300 | 896 | 700 | 0.07 | 1 | 0.28 | 2 | 6.25 | 19 | 144 |
| 6 | 800 | 300 | 640 | 700 | 0.1 | 1 | 0.4 | 2 | 10 | 19 | 144 | |
| 6 | 425 | 300 | 340 | 700 | 0.18 | 1 | 0.72 | 2 | 18.8 | 22 | 150 | |
| 6 | 266 | 200 | 212 | 500 | 0.3 | 1 | 1.2 | 2 | 30 | 22 | 150 | |
| 6 | 142 | 200 | 113 | 400 | 0.56 | 1 | 2.2 | 2 | 56 | 24 | 158 | |
| 6 | 88 | 100 | 70 | 400 | 0.9 | 1 | 3.6 | 2 | 90 | 24 | 158 | |
| 6 | 61 | 100 | 48 | 350 | 1.3 | 1 | 5.2 | 2 | 131 | 26.5 | 158 | |
| 6 | 47 | 100 | 37 | 300 | 1.68 | 1 | 6.7 | 2 | 168 | 26.5 | 164 | |
| 6 | 29 | 100 | 23 | 200 | 2.7 | 1 | 10 | 2 | 270 | 26.5 | 164 | |
| 6 | 16 | 100 | 12 | 150 | 5 | 1 | 20 | 2 | 506 | 29 | 170 | |
| 6 | 10 | 100 | 8 | 150 | 8 | 1 | 32 | 2 | 810 | 29 | 170 | |
| 6-15V | 12 | 960 | 100 | 672 | 200 | 0.1 | 0.8 | 0.4 | 1.2 | 6.25 | 19 | 144 |
| 12 | 600 | 100 | 480 | 200 | 0.15 | 0.8 | 0.6 | 1.2 | 10 | 19 | 144 | |
| 12 | 319 | 100 | 255 | 170 | 0.28 | 0.8 | 1.1 | 1.2 | 18.8 | 22 | 150 | |
| 12 | 200 | 60 | 160 | 150 | 0.45 | 0.8 | 1.8 | 1.2 | 30 | 22 | 150 | |
| 12 | 107 | 60 | 85 | 150 | 0.84 | 0.8 | 3.0 | 1.2 | 56 | 24 | 158 | |
| 12 | 66 | 60 | 52 | 100 | 1.35 | 0.8 | 5.0 | 1.2 | 90 | 24 | 158 | |
| 12 | 45 | 60 | 36 | 100 | 1.9 | 0.8 | 7.0 | 1.2 | 131 | 26.5 | 158 | |
| 12 | 35 | 50 | 28 | 100 | 2.5 | 0.8 | 10.0 | 1.2 | 168 | 26.5 | 164 | |
| 12 | 22 | 50 | 18 | 80 | 4 | 0.8 | 16 | 1.2 | 270 | 26.5 | 164 | |
| 12 | 12 | 50 | 10 | 80 | 7.5 | 0.8 | 30 | 1.2 | 506 | 29 | 170 | |
| 12 | 7 | 50 | 5.6 | 80 | 12 | 0.8 | 48 | 1.2 | 810 | 29 | 170 | |
| 12-30V | 24 | 960 | 35 | 672 | 150 | 0.15 | 0.7 | 0.6 | 0.8 | 6.25 | 19 | 144 |
| 24 | 600 | 35 | 480 | 150 | 0.2 | 0.7 | 0.8 | 0.8 | 10 | 19 | 144 | |
| 24 | 319 | 35 | 255 | 150 | 0.37 | 0.7 | 0.15 | 0.8 | 18.8 | 22 | 150 | |
| 24 | 200 | 35 | 160 | 120 | 0.6 | 0.7 | 2.4 | 0.8 | 30 | 22 | 150 | |
| 24 | 107 | 35 | 85 | 120 | 1 | 0.7 | 4 | 0.8 | 56 | 24 | 158 | |
| 24 | 66 | 35 | 52 | 100 | 1.8 | 0.7 | 7 | 0.8 | 90 | 24 | 158 | |
| 24 | 45 | 35 | 36 | 80 | 2.5 | 0.7 | 10 | 0.8 | 131 | 26.5 | 158 | |
| 24 | 35 | 30 | 28 | 60 | 3.3 | 0.7 | 13 | 0.8 | 168 | 26.5 | 164 | |
| 24 | 22 | 30 | 18 | 50 | 5 | 0.7 | 20 | 0.8 | 270 | 26.5 | 164 | |
| 24 | 12 | 30 | 10 | 40 | 10 | 0.7 | 40 | 0.8 | 506 | 29 | 170 | |
| 24 | 7 | 30 | 5.6 | 40 | 16 | 0.7 | 64 | 0.8 | 810 | 29 | 170 | |
FAQ
1. Q: Are you trading company or manufacturer?
A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.
5. Q: How is your Quality Control?
A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
